Heavy Duty Stake

Heavy Duty Stake
Heavy Duty Stake - Image 2
Heavy Duty Stake - Image 3
Heavy Duty Stake - Image 4
Heavy Duty Stake - Image 5

$115.44 - $169.88

Heavy Duty Auto Locking Stake with Mounting Holes and Hardware for Slats.

Posts are available in 12”, 18”, 24”, 30″, 36”, 42″ heights. Select the height and quantity of posts needed for your flatbed or trailer below.

  • Add slats to configure a Custom Gate System for your truck.
  • Please note these are built to order and currently have a 2-3 week lead time.
SKU: KM1 Categories: , , Tag: Brand:

Description

First hinge-able stake – folds 180°

Introducing a new chapter in stake-post evolution, rights-holder HingePost has made a dramatic break with traditional designs. The main focus of this newly patented device for flatbeds is its automated locking mechanism and its speed of operation in folding downward 180°. Even its ease of installation and removal from flatbed pockets is notable.

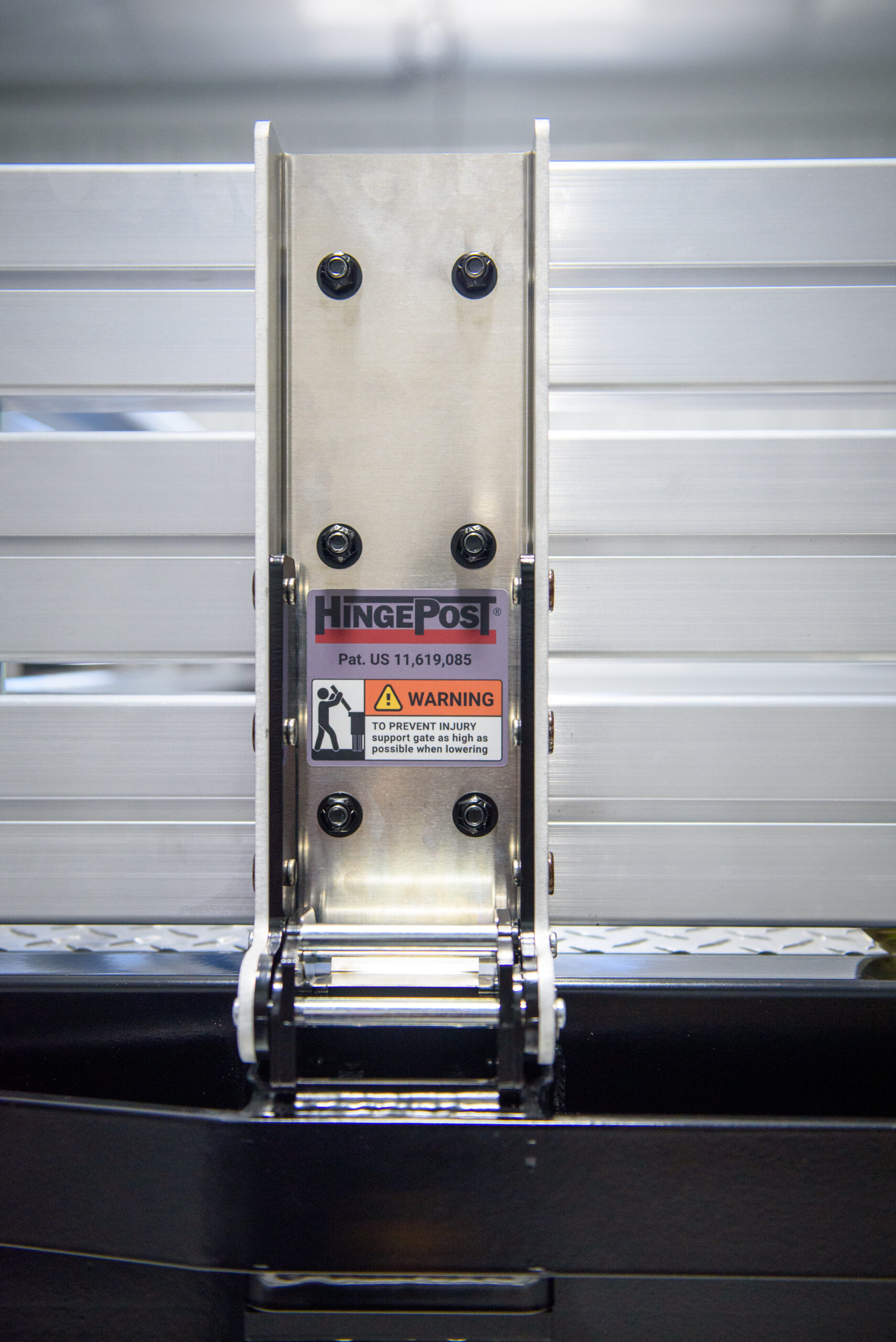

Model Shown: KM1-43

  • Add to any sidegate for the perfect configuration

    Fill additional pockets or create additional divisions in your gate system.

  • Replace a damaged post

    Easily replace an existing post that may be damaged during use.

Stake Post Horizontal Load Chart

*Load test was performed at the highest point and tested in a bilateral direction.

LengthRated
12″1200lbs
17″900lbs
24″600lbs
30″525lbs
37″450lbs
43″375lbs

Have a pre-order question?

Contact us with some details about your vehicle, we can send you the best recommendation for products that will fit.

Contact Us

Additional information

Weight N/A
Dimensions N/A
KM1 Height Options

11 Inch, 12 Inch, 17 Inch, 24 Inch, 30 Inch, 37 Inch, 43 Inch
Truck Bed Length

8, 9, 10, 11, 12, 13 Foot, 14 Foot, 15 Foot, 16 Foot, 17 Foot, 18 Foot, 19 Foot, 20 Foot, 21 Foot, 22 Foot, 23 Foot, 24 Foot, 25 Foot, 26 Foot
