Heavy Duty Stake Universal Fit
$109.60 - $150.21

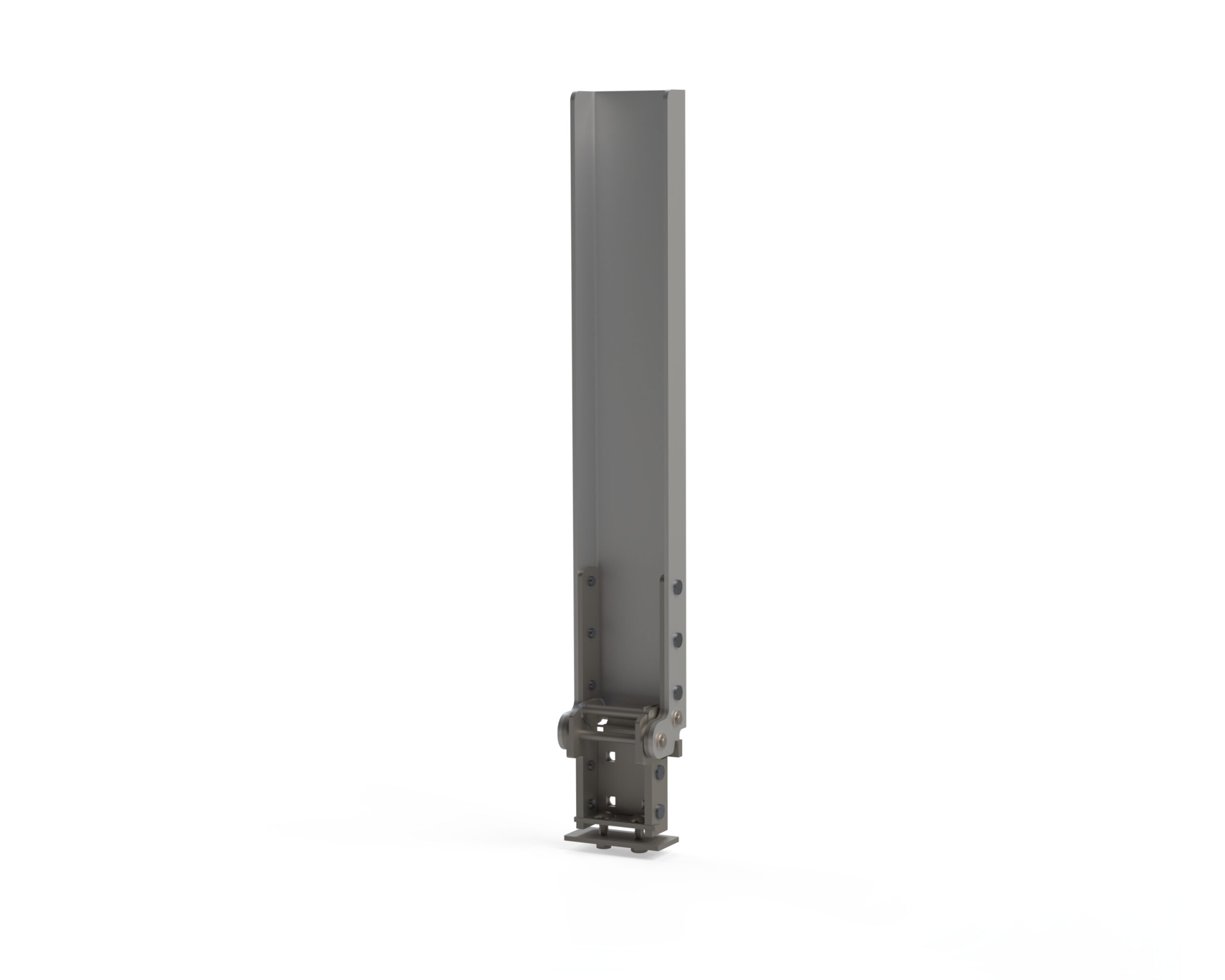

Heavy Duty Auto Locking Stake without Mounting Holes for Universal Fit.
Posts are available in 12”, 18”, 24”, 30″, 36”, 42″ heights. Select the height and quantity of stakes needed for your flatbed or trailer below.
Description

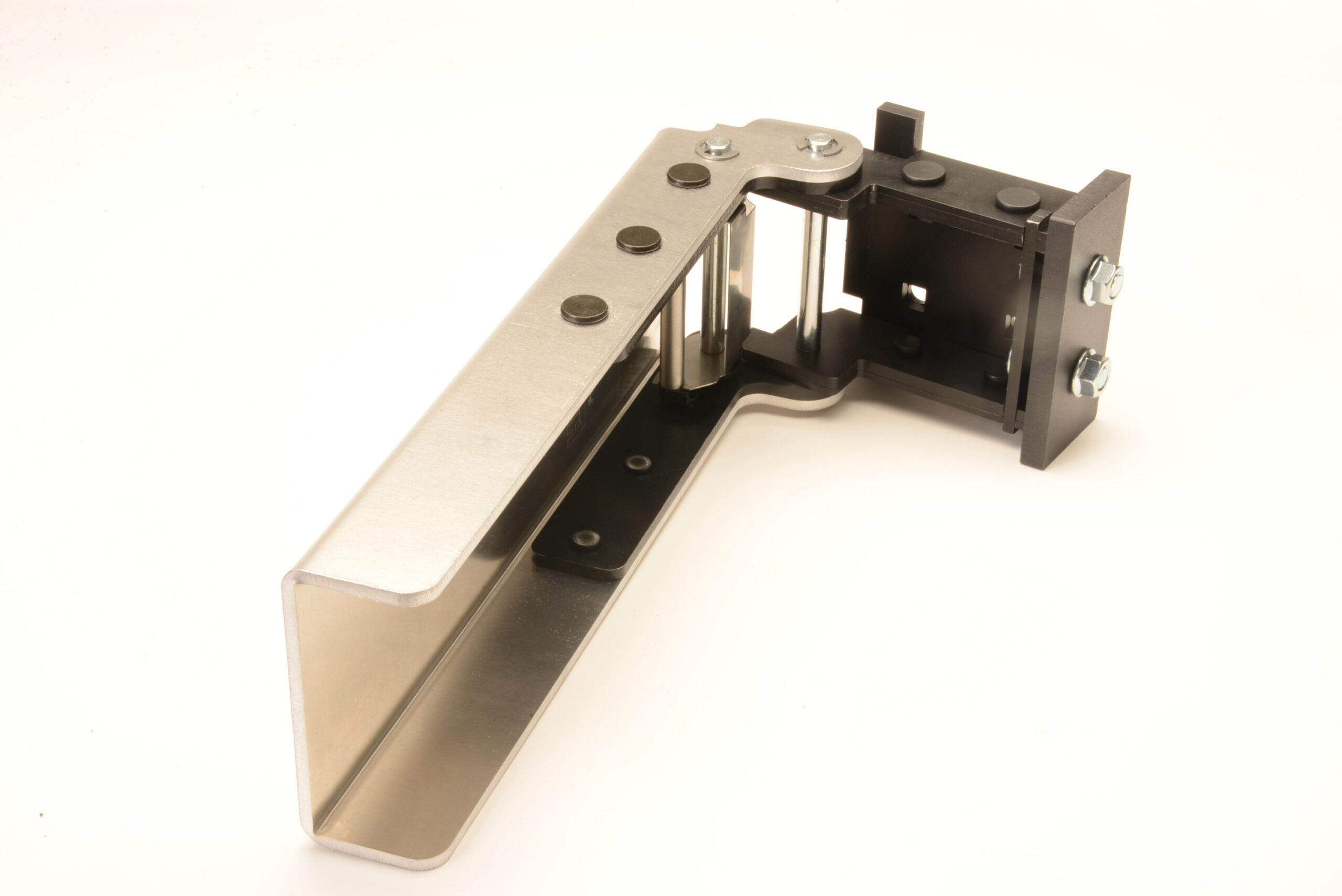

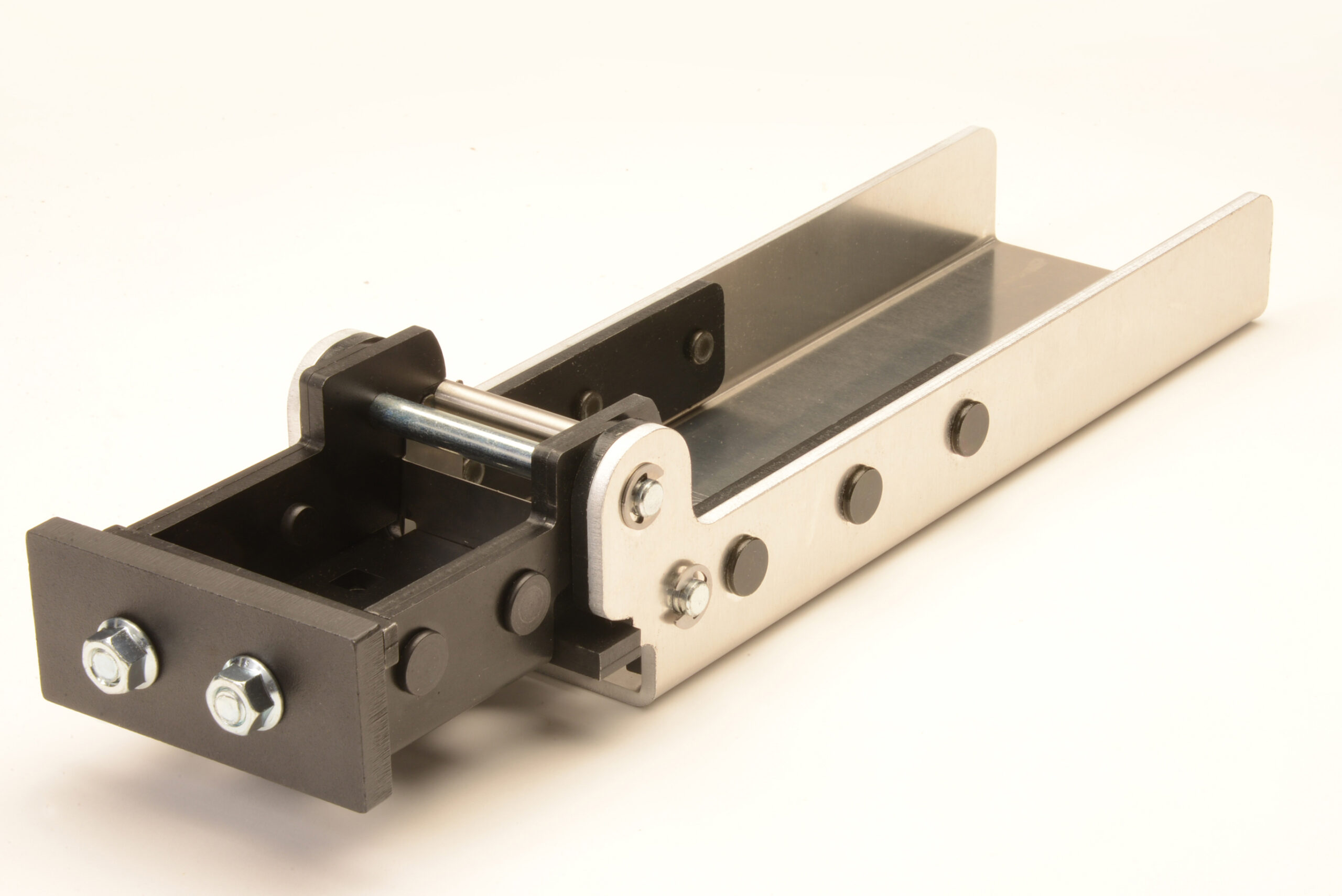

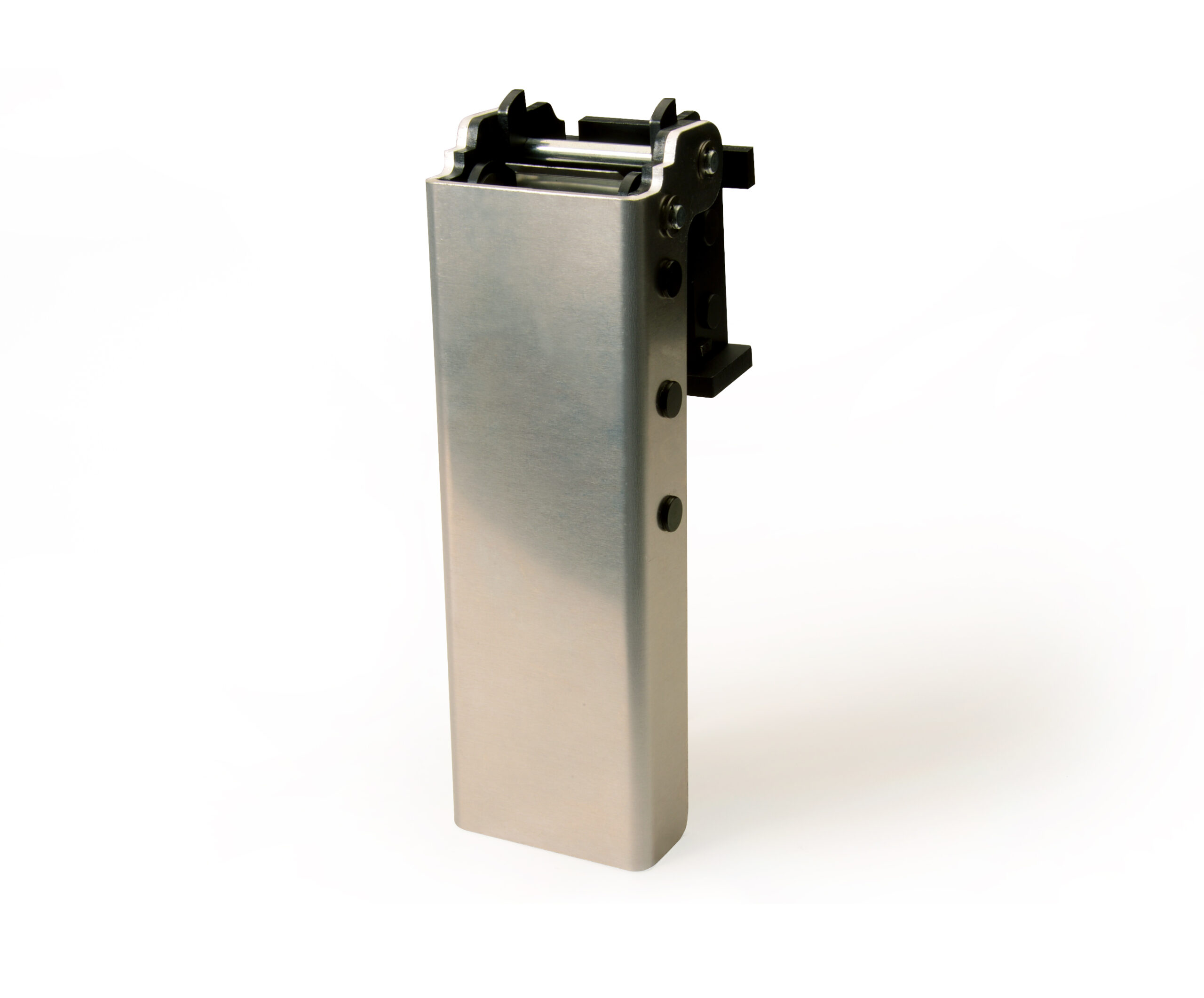

First folding stake – allows 180° of motion

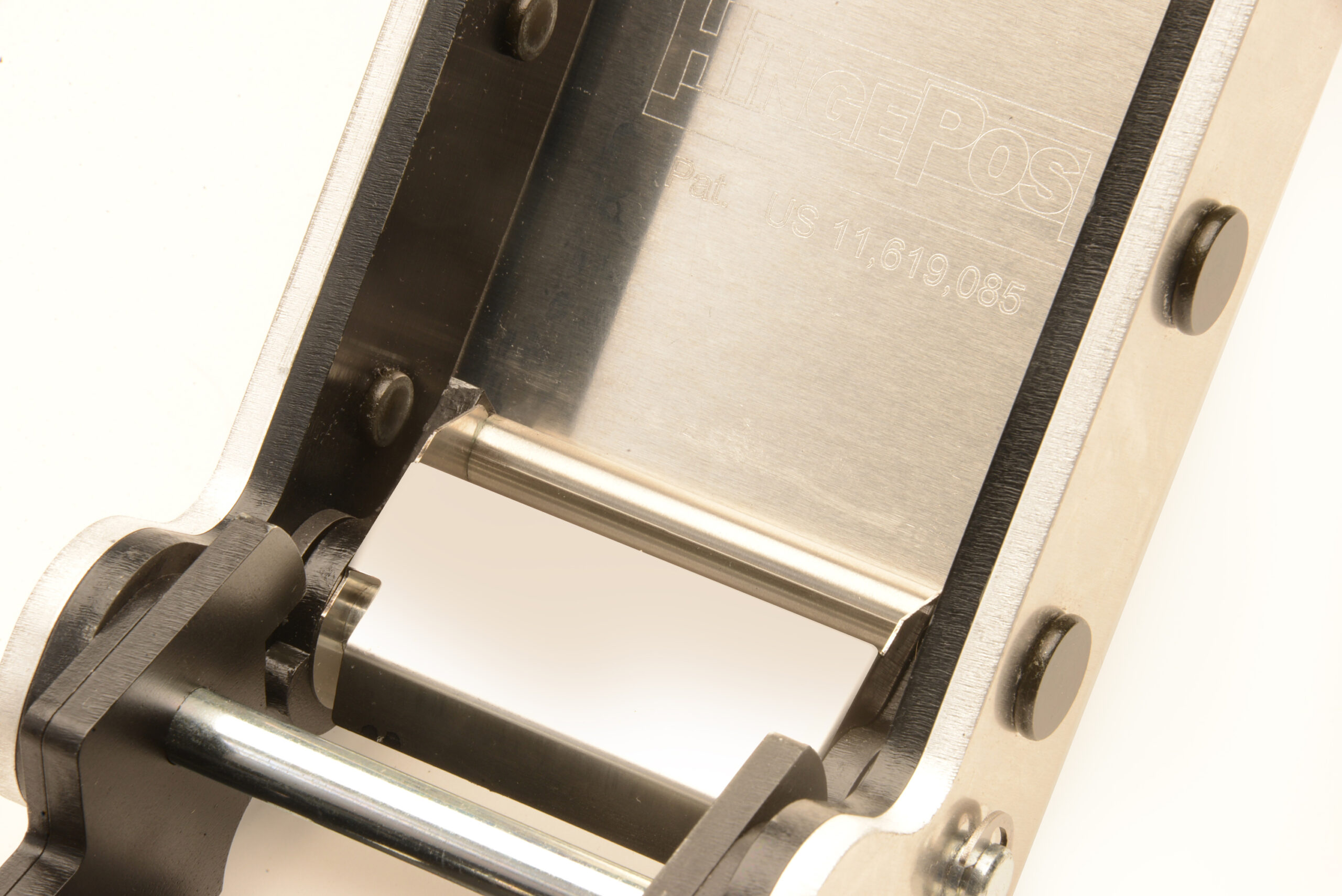

Introducing a new chapter in stake evolution, rights-holder HingePost has made a dramatic break with traditional designs. The main focus of this newly patented device for flatbeds is its automated locking mechanism and its speed of operation in folding downward 180°. Even its ease of installation and removal from flatbed pockets is notable.
Installations
Stake Horizontal Load Chart
*Load test was performed at the highest point and tested in a bilateral direction.
| Length | Rated |
|---|---|
| 12″ | 1200lbs |
| 18″ | 900lbs |
| 24″ | 600lbs |
| 30″ | 525lbs |
| 36″ | 450lbs |
| 42″ | 375lbs |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| M1 Height Options | 12 Inch, 18 Inch, 24 Inch, 30 Inch, 36 Inch, 42 Inch, 48 Inch |
